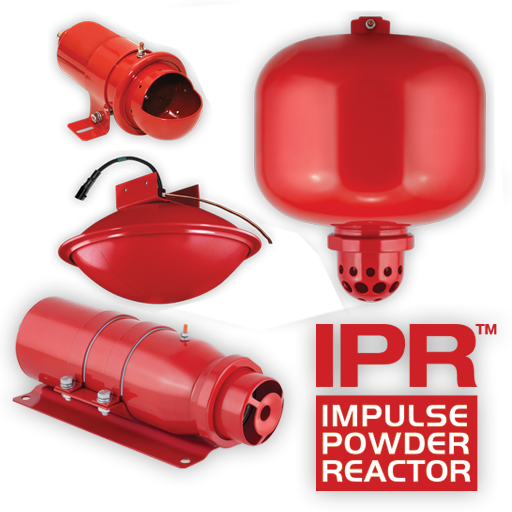

IPR™ Fire Extinguishers

  • Specifically designed for targeted suppression of the ignition source in open areas, storage zones containing highly flammable materials, and large spaces with high ceilings.
  • IPR™ fire extinguishers are non-pressurized devices. When an electric current is applied, the expansion module inside the unit activates and instantly generates pressure. This pressure discharges the extinguishing powder through a specially designed nozzle, suppressing the fire within approximately 3 seconds with a powerful shockwave effect. It can reduce fire damage by up to 90%.

The service life of the extinguishing agent is 10 years

IPR™ TECHNOLOGY
CLASS A, B & C FIRE PROTECTION

IPR™ (Impulse Powder Reactor) fire extinguishers are specifically designed for targeted suppression of the ignition source in open areas, storage zones containing highly flammable materials, and large spaces with high ceilings.

IPR™ fire extinguishers are non-pressurized devices. When an electric current is applied, the expansion module inside the unit activates and instantly generates pressure. This pressure discharges the extinguishing powder through a specially designed nozzle, suppressing the fire within approximately 3 seconds with a powerful shockwave effect. It can reduce fire damage by up to 90%.

The specialized ”UL and EN Approved” extinguishing powder used in IPRTM fire suppression systems penetrates beyond visible flames to reach the root points where the fire is fueled, extinguishing it at its source while minimizing the risk of re-ignition.

Since IPR™ fire extinguishers are not pressure vessels, they do not require annual maintenance, part replacement, antistatic testing, or gas refilling. Their lightweight design makes them easy to transport, install, mount, and dismantle. They require no piping and, apart from periodic inspections, do not generate operating costs for many years.

IPR™ fire extinguishers are available in various models depending on the application area. The service life of the extinguishing agent is 10 years.

e-Brochure

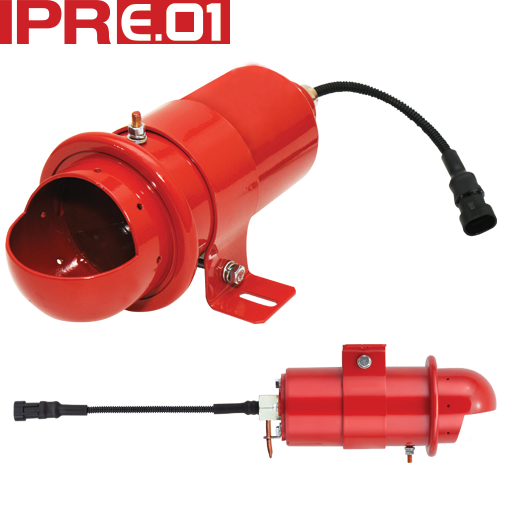

IPR E.01

The IPR E.01 is specifically designed for the engine and hydraulic compartments of heavy machinery such as excavators and harbor cranes, where fire risk is high. Such environments are generally unsuitable for gas-based fire suppression systems.

The IPR E.01 is highly resistant to vibration, can be easily installed even in confined spaces, and features an adjustable discharge outlet that enables precise targeting of the protected area.

Thanks to its built-in heat sensor, the IPR E.01 can rapidly detect a fire and activate automatically without requiring an external power source.

In addition to its autonomous detection capability, the IPR E.01 can optionally be used with Thermo-Tag®. Thermo-Tag® features an IP67-rated metal housing specifically designed for oily, dirty, and impact-prone environments.

Technicial Specifications

      • Dry Powder Mass: 0.47kg
      • Protected Area: 1m²
      • Operating Temp.: -50°C to +95°C
      • Starting Current: 0.9A
      • Action Time: 0.5s
      • Non Pressurized Equipment
      • Extinguishing powder is non-conductive and non-corrosive.

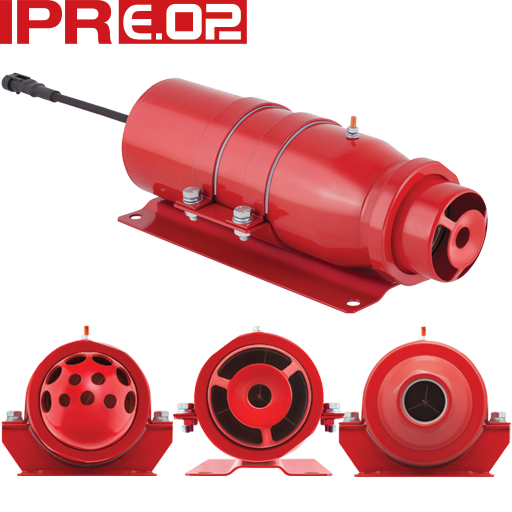

 IPR E.02

This model is specifically designed for targeted fire suppression in high-ceiling and large-scale industrial facilities to protect high-risk areas. It is an ideal solution for protecting hydraulic tank motor sections, chemical storage areas, and machinery or equipment zones within production lines that carry a high fire risk.

IPR E.02 features high vibration resistance and can be easily installed even in the tightest spaces.

When integrated with Cordy-Tag® and LHD (Linear Heat Detection Cable), it creates a complete fire detection and suppression system for risky areas without the need for any external power source.

IPR E.02 can also be used in conjunction with Thermo-Tag®. Specifically designed for oily, dirty, and impact-prone environments, Thermo-Tag® features a robust metal housing with an IP67 protection rating. It detects heat via internal thermostats and generates the necessary electrical current to trigger the IPR E.02 unit.

Technicial Specifications

      • Dry Powder Mass: 1.65kg
      • Protected Area: 10m²
      • Operating Temp.: -50°C to +95°C
      • Starting Current: 0.9A
      • Action Time: 0.5s
      • Non Pressurized Equipment
      • Extinguishing powder is non-conductive and non-corrosive.

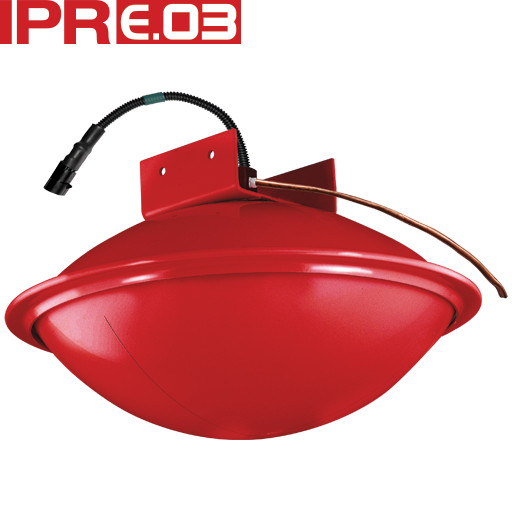

IPR E.03

Forklift battery charging areas are classified as hazardous zones and are typically located in open areas, under canopies, or in enclosed spaces within facilities. The ability of IPR technology to effectively suppress fires in open areas is one of its key advantages.

The IPR E.03 can rapidly and efficiently protect an area of up to 7m², with an 80-degree discharge angle, at ceiling heights of up to 3.5 meters.

The IPR E.03 can be activated via its built-in autonomous heat sensor. It can also be optionally integrated with detection and triggering devices such as Fire-Tag® and Cordy-Tag®.

Fire-Tag® is an externally activated sensor that autonomously generates the electrical current required for activation—without the need for an external power source—and triggers the extinguishing unit.

Cordy-Tag® is specifically designed for facilities that prefer fire detection using LHD (Linear Heat Detection) cable systems.

Technicial Specifications

      • Dry Powder Mass: 1.95kg
      • Protected Area: 7m²
      • Operating Temp.: -50°C to +95°C
      • Starting Current: 0.9A
      • Action Time: 0.5s
      • Non Pressurized Equipment
      • Extinguishing powder is non-conductive and non-corrosive.

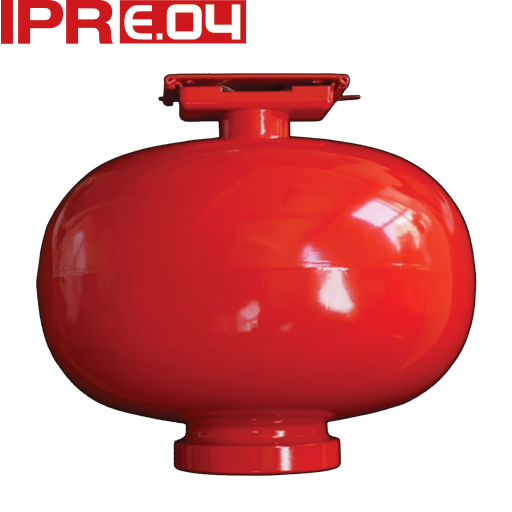

IPR E.04

Specially designed for transformer rooms, MV (Medium Voltage) switchgear rooms, hydraulic rooms, and chemical storage areas. It allows for installation at heights of up to 6 meters. The IPR E.04 is available in two different models, featuring either wall-mount or ceiling-mount brackets.

It is compatible with all detection systems, regardless of the brand. A single IPR E.04 unit can effectively and rapidly extinguish fires in areas of up to 20 m².

Technicial Specifications

      • Dry Powder Mass: 3.9kg
      • Protected Area: 20m²
      • Operating Temp.: -50°C to +95°C
      • Starting Current: 0.9A
      • Action Time: 1s
      • Non Pressurized Equipment
      • Extinguishing powder is non-conductive and non-corrosive.

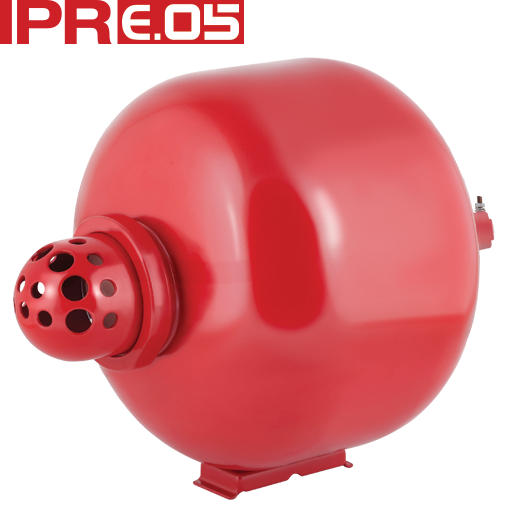

IPR E.05

Specially designed for large-scale transformer rooms, MV (Medium Voltage) switchgear rooms, hydraulic rooms, and chemical storage areas. It allows for installation at heights of up to 8 meters. The IPR E.05 is available in two distinct models: wall-mounted and ceiling-mounted.

It is fully compatible with all fire detection systems, regardless of the brand. A single IPR E.05 unit can effectively and rapidly extinguish fires in areas of up to 32 m².

Technicial Specifications

      • Dry Powder Mass: 7kg
      • Protected Area: 32m²
      • Operating Temp.: -50°C to +95°C
      • Starting Current: 0.9A
      • Action Time: 1s
      • Non Pressurized Equipment
      • Extinguishing powder is non-conductive and non-corrosive.
